8 Channels 700Mhz - 6Ghz Mobile Phone Signal Jammer with 20W Each Band for Vehicle Mounted Use

Brand Name : Sacontelecom

Model Number : SA-MJ08

Certification : ISO9001, CE, Rochs

Place of Origin : China

MOQ : 5pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,Paypal

Supply Ability : 1000pcs per Month

Delivery Time : 3-7 Working Days After Payment

Packaging Details : Neutral Packing Carton Box

Product Name : Vehicle Mounted Signal Jammer

Output Power : 160w

Jamming Range : 2~80(m) @the Signal Strength Is At -80dBm

Power Supply Mode : DC-12V/24V

Weight : 10kgs

Dimensions (length × Width × Height) : 460mm×330mm×70mm

Contact Now

700Mhz - 6Ghz Mobile Phone Signal Jammer 8 Channels 20w Each Band With Switch
Product Overview

This vehicle-mounted mobile phone signal jamming device blocks frequency signals from 700Mhz to 6000Mhz. Designed to prevent unauthorized wireless communication in this frequency band, the 8-channel signal blocker delivers high power output of 20w per band with individual switch control. Capable of 24-hour continuous operation.

Key Features
  • Easy installation without vehicle modification
  • Modular construction for easy maintenance and upgrades
  • Simple operation with large interference radius
  • Optional frequency bands and output power
  • Local or wired control mode selection
  • AC or DC power supply options
  • Excellent heat dissipation for reliable performance
  • High power output for long-distance range
Technical Specifications
Frequency Band Power Output
2G Cell Phone Band 758-830MHz 20W
2G Cell Phone Band 869-894MHz 20W
2G Cell Phone Band 1930-1990MHz 20W
3G Cell Phone Band 2110-2180MHz 20W
GPS Band 1560-1580MHz 20W
WIFI Band 2400-2484MHz 20W
R/C 433MHz Band 425-440MHz 20W
4G 2600MHz 2620-2690MHz 20W
Total Output Power 160W
  • Jamming Range: 2-80 meters (at -80dBm signal strength)
  • Power Supply: DC-12V/24V Battery powered
  • Humidity: 5%-95%
  • Operating Temperature: -20℃ to +60℃
  • Weight: 10Kg
  • Dimensions: 460×330×70mm
  • Antenna: Omni-directional antenna
America Type Frequency

For United States, Canada, Mexico, South America

  • GSM850MHz: 850-894MHz; 20W (GSM/CDMA)
  • GSM1900MHz: 1920-1990MHz; 20W (2GGSM/CDMA/PCS1900MHz)
  • 4GLTE700MHz: 700-800MHz; 20W
  • 3G2100MHz: 2100-2170MHz; 20W (3GUMTS/WCDMA/TD-SCDMA/CDMA)
  • Wi-Fi/Bluetooth2.4G: 2400-2500MHz; 20W
  • 4G WiMAX/4GLTE2600MHz: 2500-2700MHz; 20W
  • GPS/Glonass/GalileoL1: 1570-1620MHz; 20W
  • GPS/Glonass/GalileoL2: 1200-2300MHz; 20W
  • Total Output Power: 160W
Europe Type Frequency

For Europe, Asia, Australia, Middle East, Africa

  • GSM900MHz: 925-960MHz; 20W
  • GSM1800MHz: 1805-1880MHz; 20W (2GGSM/CDMA/DCS1800MHz)
  • 4GLTE700MHz: 790-821MHz; 20W
  • 3G2100MHz: 2100-2170MHz; 20W (3GUMTS/WCDMA/TD-SCDMA/CDMA)
  • Wi-Fi/Bluetooth 2.4G: 2400-2500MHz; 20W
  • 4GWiMAX/4GLTE2600MHz: 2620-2690MHz; 20W
  • GPS/Glonass/GalileoL1: 1570-1620MHz; 20W
  • GPS/Glonass/GalileoL2: 1200-2300MHz; 20W
  • Total Output Power: 160W
Optional Frequencies
  • Lojack: 173.03MHz
  • CDMA450MHz: 430-450/460-470MHz
  • GPS/GLONASS/GALILEO: L1, L2, L3, L4, L5
  • Wireless Camera: 1.2G
  • Car remote control: 433MHz, 315MHz, 868MHz, 920-965MHz
  • Walkie-Talkie: VHF, UHF
  • SAT Satellite Phones: 1520-1670MHz
  • Wi-Fi 11a/n 5.1-5.5GHz: 5100-5500MHz; 10W
  • Wi-Fi 11a/n 5.5-5.9GHz: 5500-5900MHz; 10W

Customized frequency settings available based on detailed requirements.

Application Areas
  • Meeting rooms, conference rooms, museums, galleries, theaters, concert halls
  • Churches, temples, restaurants, classrooms, training centers
  • Factories, banks, trains, buses
  • For hospitals, gas stations and other sensitive locations: field testing recommended to ensure no interference
Package Contents

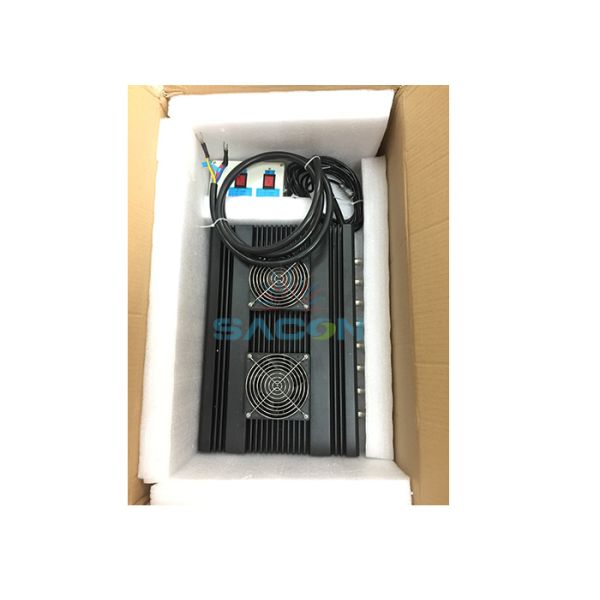

  • 160w Signal Jammer: 1 piece

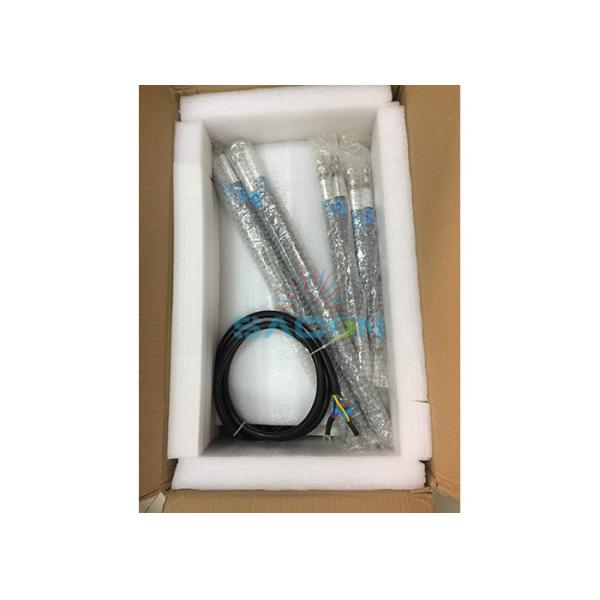

  • Omni Antennas: 8 pieces
  • AC110 or 220V Power Supply: 1 piece
  • Installation bracket
